Janus VideoRoom plugin. More...

#include "plugin.h"
#include <jansson.h>
#include "../debug.h"
#include "../apierror.h"
#include "../config.h"
#include "../mutex.h"
#include "../rtp.h"
#include "../rtpsrtp.h"
#include "../rtcp.h"
#include "../record.h"
#include "../sdp-utils.h"
#include "../utils.h"
#include <sys/types.h>
#include <sys/socket.h>

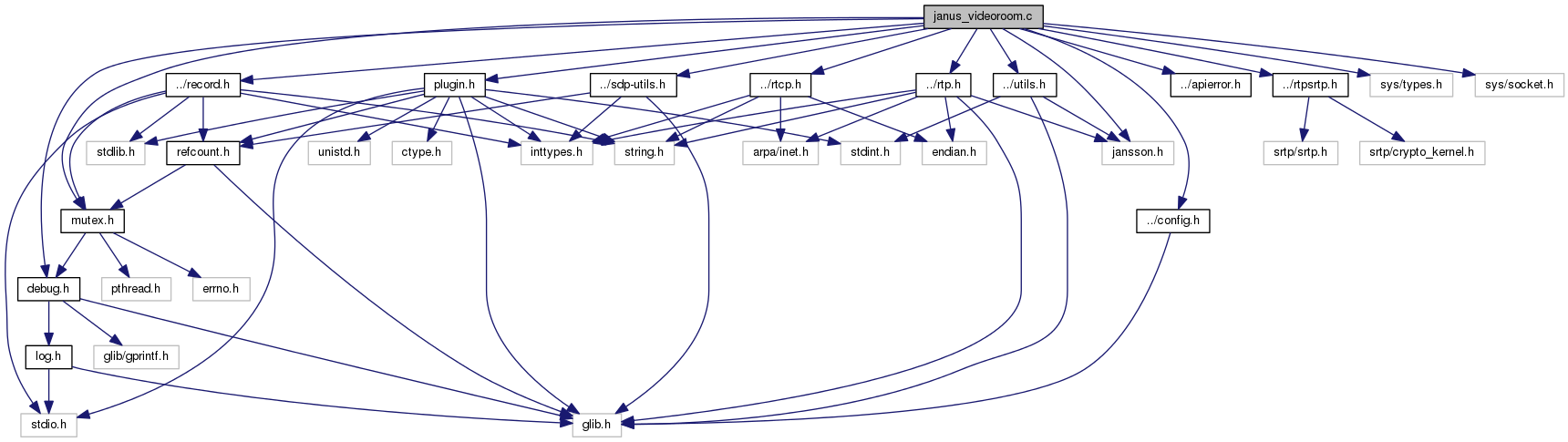

Include dependency graph for janus_videoroom.c:

Data Structures
struct	janus_videoroom_message

struct	janus_videoroom

struct	janus_videoroom_session

struct	janus_videoroom_rtp_forwarder

struct	janus_videoroom_srtp_context

struct	janus_videoroom_rtcp_receiver

struct	janus_videoroom_publisher

struct	janus_videoroom_publisher_stream

struct	janus_videoroom_subscriber

struct	janus_videoroom_subscriber_stream

struct	janus_videoroom_rtp_relay_packet

struct	janus_videoroom_data_relay_packet

Macros
#define	JANUS_VIDEOROOM_VERSION 10

#define	JANUS_VIDEOROOM_VERSION_STRING "0.0.10"

#define	JANUS_VIDEOROOM_DESCRIPTION "This is a plugin implementing a videoconferencing SFU (Selective Forwarding Unit) for Janus, that is an audio/video router."

#define	JANUS_VIDEOROOM_NAME "JANUS VideoRoom plugin"

#define	JANUS_VIDEOROOM_AUTHOR "Meetecho s.r.l."

#define	JANUS_VIDEOROOM_PACKAGE "janus.plugin.videoroom"

#define	JANUS_VIDEOROOM_ERROR_UNKNOWN_ERROR 499

#define	JANUS_VIDEOROOM_ERROR_NO_MESSAGE 421

#define	JANUS_VIDEOROOM_ERROR_INVALID_JSON 422

#define	JANUS_VIDEOROOM_ERROR_INVALID_REQUEST 423

#define	JANUS_VIDEOROOM_ERROR_JOIN_FIRST 424

#define	JANUS_VIDEOROOM_ERROR_ALREADY_JOINED 425

#define	JANUS_VIDEOROOM_ERROR_NO_SUCH_ROOM 426

#define	JANUS_VIDEOROOM_ERROR_ROOM_EXISTS 427

#define	JANUS_VIDEOROOM_ERROR_NO_SUCH_FEED 428

#define	JANUS_VIDEOROOM_ERROR_MISSING_ELEMENT 429

#define	JANUS_VIDEOROOM_ERROR_INVALID_ELEMENT 430

#define	JANUS_VIDEOROOM_ERROR_INVALID_SDP_TYPE 431

#define	JANUS_VIDEOROOM_ERROR_PUBLISHERS_FULL 432

#define	JANUS_VIDEOROOM_ERROR_UNAUTHORIZED 433

#define	JANUS_VIDEOROOM_ERROR_ALREADY_PUBLISHED 434

#define	JANUS_VIDEOROOM_ERROR_NOT_PUBLISHED 435

#define	JANUS_VIDEOROOM_ERROR_ID_EXISTS 436

#define	JANUS_VIDEOROOM_ERROR_INVALID_SDP 437

Typedefs
typedef enum janus_videoroom_p_type	janus_videoroom_p_type

typedef enum janus_videoroom_media	janus_videoroom_media

typedef struct janus_videoroom_message	janus_videoroom_message

typedef struct janus_videoroom	janus_videoroom

typedef struct janus_videoroom_session	janus_videoroom_session

typedef struct janus_videoroom_srtp_context	janus_videoroom_srtp_context

typedef struct janus_videoroom_rtp_forwarder	janus_videoroom_rtp_forwarder

typedef struct janus_videoroom_rtcp_receiver	janus_videoroom_rtcp_receiver

typedef struct janus_videoroom_publisher	janus_videoroom_publisher

typedef struct janus_videoroom_publisher_stream	janus_videoroom_publisher_stream

typedef struct janus_videoroom_subscriber	janus_videoroom_subscriber

typedef struct janus_videoroom_subscriber_stream	janus_videoroom_subscriber_stream

typedef struct janus_videoroom_rtp_relay_packet	janus_videoroom_rtp_relay_packet

typedef struct janus_videoroom_data_relay_packet	janus_videoroom_data_relay_packet

Enumerations
enum	janus_videoroom_p_type { janus_videoroom_p_type_none = 0, janus_videoroom_p_type_subscriber, janus_videoroom_p_type_publisher }

enum	janus_videoroom_media { JANUS_VIDEOROOM_MEDIA_NONE = 0, JANUS_VIDEOROOM_MEDIA_AUDIO, JANUS_VIDEOROOM_MEDIA_VIDEO, JANUS_VIDEOROOM_MEDIA_DATA }

Functions
janus_plugin *	create (void)

int	janus_videoroom_init (janus_callbacks callback, const char config_path)

void	janus_videoroom_destroy (void)

int	janus_videoroom_get_api_compatibility (void)

int	janus_videoroom_get_version (void)

const char *	janus_videoroom_get_version_string (void)

const char *	janus_videoroom_get_description (void)

const char *	janus_videoroom_get_name (void)

const char *	janus_videoroom_get_author (void)

const char *	janus_videoroom_get_package (void)

void	janus_videoroom_create_session (janus_plugin_session handle, int error)

struct janus_plugin_result *	janus_videoroom_handle_message (janus_plugin_session handle, char transaction, json_t message, json_t jsep)

json_t *	janus_videoroom_handle_admin_message (json_t *message)

void	janus_videoroom_setup_media (janus_plugin_session *handle)

void	janus_videoroom_incoming_rtp (janus_plugin_session handle, int mindex, gboolean video, char buf, int len)

void	janus_videoroom_incoming_rtcp (janus_plugin_session handle, int mindex, gboolean video, char buf, int len)

void	janus_videoroom_incoming_data (janus_plugin_session handle, char label, char *buf, int len)

void	janus_videoroom_slow_link (janus_plugin_session *handle, int mindex, gboolean video, gboolean uplink)

void	janus_videoroom_hangup_media (janus_plugin_session *handle)

void	janus_videoroom_destroy_session (janus_plugin_session handle, int error)

json_t *	janus_videoroom_query_session (janus_plugin_session *handle)

Detailed Description

Janus VideoRoom plugin.

Author: Lorenzo Miniero loren.nosp@m.zo@m.nosp@m.eetec.nosp@m.ho.c.nosp@m.om

Copyright: GNU General Public License v3

Check the VideoRoom plugin documentation for more details.

Plugins

Macro Definition Documentation

#define JANUS_VIDEOROOM_AUTHOR "Meetecho s.r.l."

#define JANUS_VIDEOROOM_DESCRIPTION "This is a plugin implementing a videoconferencing SFU (Selective Forwarding Unit) for Janus, that is an audio/video router."

#define JANUS_VIDEOROOM_ERROR_ALREADY_JOINED 425

#define JANUS_VIDEOROOM_ERROR_ALREADY_PUBLISHED 434

#define JANUS_VIDEOROOM_ERROR_ID_EXISTS 436

#define JANUS_VIDEOROOM_ERROR_INVALID_ELEMENT 430

#define JANUS_VIDEOROOM_ERROR_INVALID_JSON 422

#define JANUS_VIDEOROOM_ERROR_INVALID_REQUEST 423

#define JANUS_VIDEOROOM_ERROR_INVALID_SDP 437

#define JANUS_VIDEOROOM_ERROR_INVALID_SDP_TYPE 431

#define JANUS_VIDEOROOM_ERROR_JOIN_FIRST 424

#define JANUS_VIDEOROOM_ERROR_MISSING_ELEMENT 429

#define JANUS_VIDEOROOM_ERROR_NO_MESSAGE 421

#define JANUS_VIDEOROOM_ERROR_NO_SUCH_FEED 428
