ice.h File Reference

Janus handles and ICE/STUN/TURN processing (headers) More...

#include <glib.h>
#include <agent.h>
#include "sdp.h"
#include "dtls.h"
#include "sctp.h"
#include "rtcp.h"
#include "text2pcap.h"
#include "utils.h"
#include "ip-utils.h"
#include "refcount.h"
#include "plugins/plugin.h"

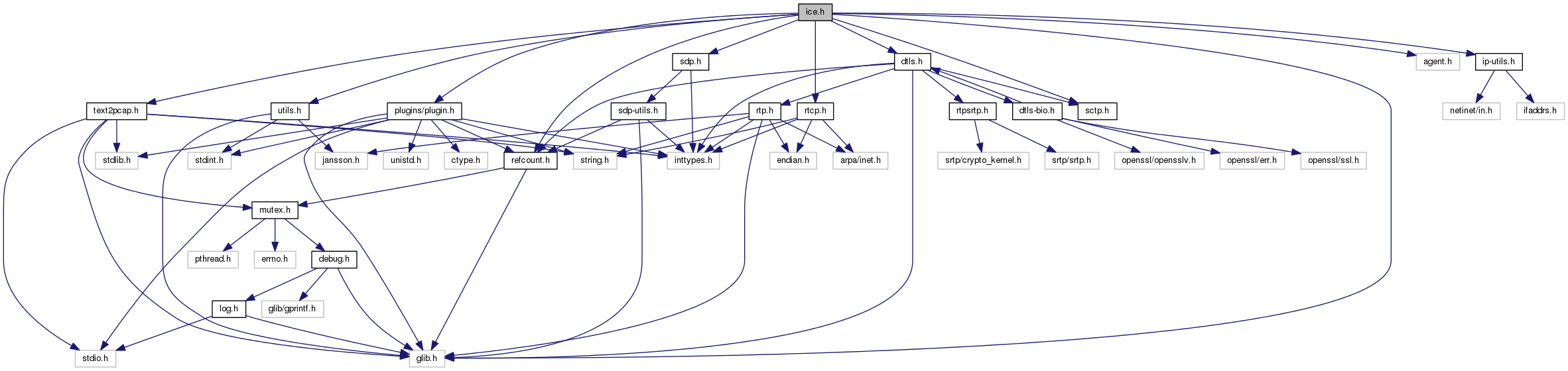

Include dependency graph for ice.h:

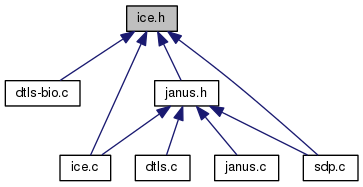

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	janus_media_stats_info
	Janus media statistics. More...
struct	janus_media_stats
	Janus media statistics container. More...
struct	janus_seq_info
	A helper struct for determining when to send NACKs. More...
struct	janus_handle
	Janus handle. More...
struct	janus_handle_webrtc
	Janus handle WebRTC PeerConnection. More...
struct	janus_handle_webrtc_medium
	A single media in a PeerConnection. More...
struct	janus_trickle
	Helper to handle pending trickle candidates (e.g., when we're still waiting for an offer) More...

Macros
#define	JANUS_HANDLE_WEBRTC_PROCESSING_OFFER   (1 << 0)
#define	JANUS_HANDLE_WEBRTC_START   (1 << 1)
#define	JANUS_HANDLE_WEBRTC_READY   (1 << 2)
#define	JANUS_HANDLE_WEBRTC_STOP   (1 << 3)
#define	JANUS_HANDLE_WEBRTC_ALERT   (1 << 4)
#define	JANUS_HANDLE_WEBRTC_NEGOTIATED   (1 << 5)
#define	JANUS_HANDLE_WEBRTC_TRICKLE   (1 << 7)
#define	JANUS_HANDLE_WEBRTC_ALL_TRICKLES   (1 << 8)
#define	JANUS_HANDLE_WEBRTC_TRICKLE_SYNCED   (1 << 9)
#define	JANUS_HANDLE_WEBRTC_DATA_CHANNELS   (1 << 10)
#define	JANUS_HANDLE_WEBRTC_CLEANING   (1 << 11)
#define	JANUS_HANDLE_WEBRTC_GOT_OFFER   (1 << 14)
#define	JANUS_HANDLE_WEBRTC_GOT_ANSWER   (1 << 15)
#define	JANUS_HANDLE_WEBRTC_HAS_AGENT   (1 << 16)
#define	JANUS_HANDLE_WEBRTC_ICE_RESTART   (1 << 17)
#define	JANUS_HANDLE_WEBRTC_RESEND_TRICKLES   (1 << 18)
#define	JANUS_HANDLE_WEBRTC_RFC4588_RTX   (1 << 19)
#define	JANUS_HANDLE_WEBRTC_NEW_DATACHAN_SDP   (1 << 20)
#define	LAST_SEQS_MAX_LEN   160

Typedefs
typedef struct janus_handle	janus_handle
	Janus handle in a session. More...
typedef struct janus_handle_webrtc	janus_handle_webrtc
	Janus handle WebRTC PeerConnection. More...
typedef struct janus_handle_webrtc_medium	janus_handle_webrtc_medium
	A single medium (i.e., m-line) in a Janus handle PeerConnection: can be bidirectional. More...
typedef struct janus_trickle	janus_trickle
	Helper to handle pending trickle candidates (e.g., when we're still waiting for an offer) More...
typedef enum janus_media_type	janus_media_type
	Janus media types. More...
typedef struct janus_media_stats_info	janus_media_stats_info
	Janus media statistics. More...
typedef struct janus_media_stats	janus_media_stats
	Janus media statistics container. More...
typedef struct janus_seq_info	janus_seq_info
	A helper struct for determining when to send NACKs. More...

Enumerations
enum	janus_media_type { JANUS_MEDIA_UNKNOWN = 0, JANUS_MEDIA_AUDIO, JANUS_MEDIA_VIDEO, JANUS_MEDIA_DATA }
	Janus media types. More...
enum	{ SEQ_MISSING, SEQ_NACKED, SEQ_GIVEUP, SEQ_RECVED }

Functions
void	janus_ice_init (gboolean ice_lite, gboolean ice_tcp, gboolean full_trickle, gboolean ipv6, uint16_t rtp_min_port, uint16_t rtp_max_port)
	ICE stuff initialization. More...
void	janus_ice_deinit (void)
	ICE stuff de-initialization. More...
int	janus_ice_test_stun_server (janus_network_address *addr, uint16_t port, janus_network_address *public_addr)
	Method to check whether a STUN server is reachable. More...
int	janus_ice_set_stun_server (gchar *stun_server, uint16_t stun_port)
	Method to force Janus to use a STUN server when gathering candidates. More...
int	janus_ice_set_turn_server (gchar *turn_server, uint16_t turn_port, gchar *turn_type, gchar *turn_user, gchar *turn_pwd)
	Method to force Janus to use a TURN server when gathering candidates. More...
int	janus_ice_set_turn_rest_api (gchar *api_server, gchar *api_key, gchar *api_method)
	Method to force Janus to contact a TURN REST API server to get a TURN service to use when gathering candidates. The TURN REST API takes precedence over any static credential passed via janus_ice_set_turn_server. More...
char *	janus_ice_get_stun_server (void)
	Method to get the STUN server IP address. More...
uint16_t	janus_ice_get_stun_port (void)
	Method to get the STUN server port. More...
char *	janus_ice_get_turn_server (void)
	Method to get the TURN server IP address. More...
uint16_t	janus_ice_get_turn_port (void)
	Method to get the TURN server port. More...
char *	janus_ice_get_turn_rest_api (void)
	Method to get the specified TURN REST API backend, if any. More...
void	janus_ice_enable_nat_1_1 (void)
	Helper method to force Janus to overwrite all host candidates with the public IP. More...
void	janus_ice_enforce_interface (const char *ip)
	Method to add an interface/IP to the enforce list for ICE (that is, only gather candidates from these and ignore the others) More...
gboolean	janus_ice_is_enforced (const char *ip)
	Method to check whether an interface is currently in the enforce list for ICE (that is, won't have candidates) More...
void	janus_ice_ignore_interface (const char *ip)
	Method to add an interface/IP to the ignore list for ICE (that is, don't gather candidates) More...
gboolean	janus_ice_is_ignored (const char *ip)
	Method to check whether an interface/IP is currently in the ignore list for ICE (that is, won't have candidates) More...
gboolean	janus_ice_is_ice_lite_enabled (void)
	Method to check whether ICE Lite mode is enabled or not (still WIP) More...
gboolean	janus_ice_is_ice_tcp_enabled (void)
	Method to check whether ICE-TCP support is enabled/supported or not (still WIP) More...
gboolean	janus_ice_is_full_trickle_enabled (void)
	Method to check whether full-trickle support is enabled or not. More...
gboolean	janus_ice_is_ipv6_enabled (void)
	Method to check whether IPv6 candidates are enabled/supported or not (still WIP) More...
void	janus_set_max_nack_queue (uint mnq)
	Method to modify the max NACK value (i.e., the number of packets per handle to store for retransmissions) More...
uint	janus_get_max_nack_queue (void)
	Method to get the current max NACK value (i.e., the number of packets per handle to store for retransmissions) More...
void	janus_set_no_media_timer (uint timer)
	Method to modify the no-media event timer (i.e., the number of seconds where no media arrives before Janus notifies this) More...
uint	janus_get_no_media_timer (void)
	Method to get the current no-media event timer (see above) More...
void	janus_set_slowlink_threshold (uint packets)
	Method to modify the slowlink-threshold property (i.e., the number of lost packets per seconds that should trigger a slow-link event) More...
uint	janus_get_slowlink_threshold (void)
	Method to get the current slowlink-threshold value (see above) More...
void	janus_set_twcc_period (uint period)
	Method to modify the TWCC feedback period (i.e., how often TWCC feedback is sent back to media senders) More...
uint	janus_get_twcc_period (void)
	Method to get the current TWCC period (see above) More...
void	janus_set_rfc4588_enabled (gboolean enabled)
	Method to enable or disable the RFC4588 support negotiation. More...
gboolean	janus_is_rfc4588_enabled (void)
	Method to check whether the RFC4588 support is enabled. More...
void	janus_ice_set_event_stats_period (int period)
	Method to modify the event handler statistics period (i.e., the number of seconds that should pass before Janus notifies event handlers about media statistics for a PeerConnection) More...
int	janus_ice_get_event_stats_period (void)
	Method to get the current event handler statistics period (see above) More...
gboolean	janus_ice_is_ice_debugging_enabled (void)
	Method to check whether libnice debugging has been enabled (http://nice.freedesktop.org/libnice/libnice-Debug-messages.html) More...
void	janus_ice_debugging_enable (void)
	Method to enable libnice debugging (http://nice.freedesktop.org/libnice/libnice-Debug-messages.html) More...
void	janus_ice_debugging_disable (void)
	Method to disable libnice debugging (the default) More...
void	janus_enable_opaqueid_in_api (void)
	Method to enable opaque ID in Janus API responses/events. More...
gboolean	janus_is_opaqueid_in_api_enabled (void)
	Method to check whether opaque ID have to be added to Janus API responses/events. More...
const gchar *	janus_get_ice_state_name (gint state)
	Helper method to get a string representation of a libnice ICE state. More...
void	janus_ice_notify_hangup (janus_handle *handle, const char *reason)
	Quick helper method to notify a WebRTC hangup through the Janus API. More...
gboolean	janus_plugin_session_is_alive (janus_plugin_session *plugin_session)
	Quick helper method to check if a plugin session associated with a Janus handle is still valid. More...
void	janus_seq_list_free (janus_seq_info **head)
janus_handle_webrtc_medium *	janus_handle_webrtc_medium_create (janus_handle *handle, janus_media_type type)
	Method to quickly create a medium to be added to a handle PeerConnection. More...
void	janus_ice_set_static_event_loops (int loops)
	Method to configure the static event loops mechanism at startup. More...
int	janus_ice_get_static_event_loops (void)
	Method to return the number of static event loops, if enabled. More...
void	janus_ice_stop_static_event_loops (void)
	Method to stop all the static event loops, if enabled. More...
Janus ICE trickle candidates methods
janus_trickle *	janus_trickle_new (const char *transaction, json_t *candidate)
	Helper method to allocate a janus_trickle instance. More...
gint	janus_trickle_parse (janus_handle *handle, json_t *candidate, const char **error)
	Helper method to parse trickle candidates. More...
void	janus_trickle_destroy (janus_trickle *trickle)
	Helper method to destroy a janus_trickle instance. More...
Janus handle methods
janus_handle *	janus_handle_create (void *core_session, const char *opaque_id)
	Method to create a new Janus handle. More...
gint	janus_handle_attach_plugin (void *core_session, janus_handle *handle, janus_plugin *plugin)
	Method to attach a Janus handle to a plugin. More...
gint	janus_handle_destroy (void *core_session, janus_handle *handle)
	Method to destroy a Janus handle. More...
void	janus_handle_webrtc_hangup (janus_handle *handle, const char *reason)
	Method to only hangup (e.g., DTLS alert) the WebRTC PeerConnection allocated by a Janus handle. More...
void	janus_handle_webrtc_destroy (janus_handle_webrtc *pc)
	Method to only free resources related to a specific PeerConnection allocated by a Janus handle. More...
Janus media relaying callbacks
void	janus_ice_relay_rtp (janus_handle *handle, int mindex, gboolean video, char *buf, int len)
	Core RTP callback, called when a plugin has an RTP packet to send to a peer. More...
void	janus_ice_relay_rtcp (janus_handle *handle, int mindex, gboolean video, char *buf, int len)
	Core RTCP callback, called when a plugin has an RTCP message to send to a peer. More...
void	janus_ice_relay_data (janus_handle *handle, char *label, char *buf, int len)
	Core SCTP/DataChannel callback, called when a plugin has data to send to a peer. More...
void	janus_ice_incoming_data (janus_handle *handle, char *label, char *buffer, int length)
	Plugin SCTP/DataChannel callback, called by the SCTP stack when when there's data for a plugin. More...
void	janus_ice_relay_sctp (janus_handle *handle, char *buffer, int length)
	Core SCTP/DataChannel callback, called by the SCTP stack when when there's data to send. More...
Janus handle helpers
int	janus_handle_setup_local (janus_handle *handle, gboolean offer, gboolean trickle)
	Method to locally set up the ICE candidates (initialization and gathering) More...
void	janus_handle_candidates_to_sdp (janus_handle *handle, janus_sdp_mline *mline, guint stream_id, guint component_id)
	Method to add local candidates to a janus_sdp SDP object representation. More...
void	janus_handle_setup_remote_candidates (janus_handle *handle, guint stream_id, guint component_id)
	Method to handle remote candidates and start the connectivity checks. More...
void	janus_handle_dtls_handshake_done (janus_handle *handle)
	Callback to be notified when the DTLS handshake for a specific component has been completed. More...
void	janus_handle_ice_restart (janus_handle *handle)
	Method to restart ICE and the connectivity checks. More...
void	janus_handle_resend_trickles (janus_handle *handle)
	Method to resend all the existing candidates via trickle (e.g., after an ICE restart) More...

Detailed Description

Janus handles and ICE/STUN/TURN processing (headers)

Author

Lorenzo Miniero loren.nosp@m.zo@m.nosp@m.eetec.nosp@m.ho.c.nosp@m.om

Copyright

GNU General Public License v3

A Janus handle represents an abstraction of the communication between a user and a specific plugin, within a Janus session. This is particularly important in terms of media connectivity, as each handle can be associated with a single WebRTC PeerConnection. This code also contains the implementation (based on libnice) of a WebRTC PeerConnection. The code handles the whole ICE process, from the gathering of candidates to the final setup of a virtual channel RTP and RTCP can be transported on. Incoming RTP and RTCP packets from peers are relayed to the associated plugins by means of the incoming_rtp and incoming_rtcp callbacks. Packets to be sent to peers are relayed by peers invoking the relay_rtp and relay_rtcp core callbacks instead.

Protocols

Macro Definition Documentation

#define JANUS_HANDLE_WEBRTC_ALERT   (1 << 4)

#define JANUS_HANDLE_WEBRTC_ALL_TRICKLES   (1 << 8)

#define JANUS_HANDLE_WEBRTC_CLEANING   (1 << 11)

#define JANUS_HANDLE_WEBRTC_DATA_CHANNELS   (1 << 10)

#define JANUS_HANDLE_WEBRTC_GOT_ANSWER   (1 << 15)

#define JANUS_HANDLE_WEBRTC_GOT_OFFER   (1 << 14)

#define JANUS_HANDLE_WEBRTC_HAS_AGENT   (1 << 16)

#define JANUS_HANDLE_WEBRTC_ICE_RESTART   (1 << 17)

#define JANUS_HANDLE_WEBRTC_NEGOTIATED   (1 << 5)

#define JANUS_HANDLE_WEBRTC_NEW_DATACHAN_SDP   (1 << 20)

#define JANUS_HANDLE_WEBRTC_PROCESSING_OFFER   (1 << 0)

#define JANUS_HANDLE_WEBRTC_READY   (1 << 2)

#define JANUS_HANDLE_WEBRTC_RESEND_TRICKLES   (1 << 18)

#define JANUS_HANDLE_WEBRTC_RFC4588_RTX   (1 << 19)

#define JANUS_HANDLE_WEBRTC_START   (1 << 1)

#define JANUS_HANDLE_WEBRTC_STOP   (1 << 3)

#define JANUS_HANDLE_WEBRTC_TRICKLE   (1 << 7)

#define JANUS_HANDLE_WEBRTC_TRICKLE_SYNCED   (1 << 9)

#define LAST_SEQS_MAX_LEN   160

Typedef Documentation

typedef struct janus_handle janus_handle

Janus handle in a session.

typedef struct janus_handle_webrtc janus_handle_webrtc

Janus handle WebRTC PeerConnection.

typedef struct janus_handle_webrtc_medium janus_handle_webrtc_medium

A single medium (i.e., m-line) in a Janus handle PeerConnection: can be bidirectional.

typedef struct janus_media_stats janus_media_stats

Janus media statistics container.

Note

To improve with more stuff

typedef struct janus_media_stats_info janus_media_stats_info

Janus media statistics.

Note

To improve with more stuff

typedef enum janus_media_type janus_media_type

Janus media types.

typedef struct janus_seq_info janus_seq_info

A helper struct for determining when to send NACKs.

typedef struct janus_trickle janus_trickle

Helper to handle pending trickle candidates (e.g., when we're still waiting for an offer)

Enumeration Type Documentation

anonymous enum

Enumerator
SEQ_MISSING
SEQ_NACKED
SEQ_GIVEUP
SEQ_RECVED

enum janus_media_type

Janus media types.

Enumerator
JANUS_MEDIA_UNKNOWN
JANUS_MEDIA_AUDIO
JANUS_MEDIA_VIDEO
JANUS_MEDIA_DATA

Function Documentation

void janus_enable_opaqueid_in_api

(

void

)

Method to enable opaque ID in Janus API responses/events.

const gchar* janus_get_ice_state_name

(

gint

state

)

Helper method to get a string representation of a libnice ICE state.

Parameters

[in]

state

The libnice ICE state

Returns

A string representation of the libnice ICE state

uint janus_get_max_nack_queue

(

void

)

Method to get the current max NACK value (i.e., the number of packets per handle to store for retransmissions)

Returns

The current max NACK value

uint janus_get_no_media_timer

(

void

)

Method to get the current no-media event timer (see above)

Returns

The current no-media event timer

uint janus_get_slowlink_threshold

(

void

)

Method to get the current slowlink-threshold value (see above)

Returns

The current slowlink-threshold value

uint janus_get_twcc_period

(

void

)

Method to get the current TWCC period (see above)

Returns

The current TWCC period

gint janus_handle_attach_plugin	(	void *	core_session,
		janus_handle *	handle,
		janus_plugin *	plugin
	)

Method to attach a Janus handle to a plugin.

This method is very important, as it allows plugins to send/receive media (RTP/RTCP) to/from a WebRTC peer.

Parameters

[in]	core_session	The core/peer session this ICE handle belongs to
[in]	handle	The Janus handle
[in]	plugin	The plugin the ICE handle needs to be attached to

Returns

0 in case of success, a negative integer otherwise

void janus_handle_candidates_to_sdp	(	janus_handle *	handle,
		janus_sdp_mline *	mline,
		guint	stream_id,
		guint	component_id
	)

Method to add local candidates to a janus_sdp SDP object representation.

Parameters

[in]	handle	The Janus handle this method refers to
[in]	mline	The Janus SDP m-line object to add candidates to
[in]	stream_id	The stream ID of the candidate to add to the SDP
[in]	component_id	The component ID of the candidate to add to the SDP

janus_handle* janus_handle_create	(	void *	core_session,
		const char *	opaque_id
	)

Method to create a new Janus handle.

Parameters

[in]	core_session	The core/peer session this ICE handle will belong to
[in]	opaque_id	The opaque identifier provided by the creator, if any (optional)

Returns

The created Janus handle if successful, NULL otherwise

gint janus_handle_destroy	(	void *	core_session,
		janus_handle *	handle
	)

Method to destroy a Janus handle.

Parameters

[in]	core_session	The core/peer session this ICE handle belongs to
[in]	handle	The Janus handle to destroy

Returns

0 in case of success, a negative integer otherwise

void janus_handle_dtls_handshake_done

(

janus_handle *

handle

)

Callback to be notified when the DTLS handshake for a specific component has been completed.

This method also decides when to notify attached plugins about the availability of a reliable PeerConnection

Parameters

[in]

handle

The Janus handle this callback refers to

void janus_handle_ice_restart

(

janus_handle *

handle

)

Method to restart ICE and the connectivity checks.

Parameters

[in]

handle

The Janus handle this method refers to

void janus_handle_resend_trickles

(

janus_handle *

handle

)

Method to resend all the existing candidates via trickle (e.g., after an ICE restart)

Parameters

[in]

handle

The Janus handle this method refers to

int janus_handle_setup_local	(	janus_handle *	handle,
		gboolean	offer,
		gboolean	trickle
	)

Method to locally set up the ICE candidates (initialization and gathering)

Parameters

[in]	handle	The Janus handle this method refers to
[in]	offer	Whether this is for an OFFER or an ANSWER
[in]	trickle	Whether ICE trickling is supported or not

Returns

0 in case of success, a negative integer otherwise

void janus_handle_setup_remote_candidates	(	janus_handle *	handle,
		guint	stream_id,
		guint	component_id
	)

Method to handle remote candidates and start the connectivity checks.

Parameters

[in]	handle	The Janus handle this method refers to
[in]	stream_id	The stream ID of the candidate to add to the SDP
[in]	component_id	The component ID of the candidate to add to the SDP

void janus_handle_webrtc_destroy

(

janus_handle_webrtc *

pc

)

Method to only free resources related to a specific PeerConnection allocated by a Janus handle.

Parameters

[in]

pc

The WebRTC PeerConnection instance to free

void janus_handle_webrtc_hangup	(	janus_handle *	handle,
		const char *	reason
	)

Method to only hangup (e.g., DTLS alert) the WebRTC PeerConnection allocated by a Janus handle.

Parameters

[in]	handle	The Janus handle instance managing the WebRTC PeerConnection to hangup
[in]	reason	A description of why this happened

janus_handle_webrtc_medium* janus_handle_webrtc_medium_create	(	janus_handle *	handle,
		janus_media_type	type
	)

Method to quickly create a medium to be added to a handle PeerConnection.

Note

This will autogenerate SSRCs, if needed

Parameters

[in]	handle	The Janus handle instance to add the medium to
[in]	type	The medium type

Returns

A pointer to the new medium, if successful, or NULL otherwise

void janus_ice_debugging_disable

(

void

)

Method to disable libnice debugging (the default)

void janus_ice_debugging_enable

(

void

)

Method to enable libnice debugging (http://nice.freedesktop.org/libnice/libnice-Debug-messages.html)

void janus_ice_deinit

(

void

)

ICE stuff de-initialization.

void janus_ice_enable_nat_1_1

(

void

)

Helper method to force Janus to overwrite all host candidates with the public IP.

void janus_ice_enforce_interface

(

const char *

ip

)

Method to add an interface/IP to the enforce list for ICE (that is, only gather candidates from these and ignore the others)

Note

This method is especially useful to speed up the ICE gathering process on the server: in fact, if you know in advance which interface must be used (e.g., the main interface connected to the internet), adding it to the enforce list will prevent libnice from gathering candidates from other interfaces. If you're interested in excluding interfaces explicitly, instead, check janus_ice_ignore_interface.

Parameters

[in]

ip

Interface/IP to enforce (e.g., 192.168. or eth0)

int janus_ice_get_event_stats_period

(

void

)

Method to get the current event handler statistics period (see above)

Returns

The current event handler stats period

int janus_ice_get_static_event_loops

(

void

)

Method to return the number of static event loops, if enabled.

Returns

The number of static event loops, if configured, or 0 if the feature is disabled

uint16_t janus_ice_get_stun_port

(

void

)

Method to get the STUN server port.

Returns

The currently used STUN server port, if available, or 0 if not

char* janus_ice_get_stun_server

(

void

)

Method to get the STUN server IP address.

Returns

The currently used STUN server IP address, if available, or NULL if not

uint16_t janus_ice_get_turn_port

(

void

)

Method to get the TURN server port.

Returns

The currently used TURN server port, if available, or 0 if not

char* janus_ice_get_turn_rest_api

(

void

)

Method to get the specified TURN REST API backend, if any.

Returns

The currently specified TURN REST API backend, if available, or NULL if not

char* janus_ice_get_turn_server

(

void

)

Method to get the TURN server IP address.

Returns

The currently used TURN server IP address, if available, or NULL if not

void janus_ice_ignore_interface

(

const char *

ip

)

Method to add an interface/IP to the ignore list for ICE (that is, don't gather candidates)

Note

This method is especially useful to speed up the ICE gathering process on the server: in fact, if you know in advance an interface is not going to be used (e.g., one of those created by VMware), adding it to the ignore list will prevent libnice from gathering a candidate for it. Unlike the enforce list, the ignore list also accepts IP addresses, partial or complete. If you're interested in only using specific interfaces, instead, check janus_ice_enforce_interface.

Parameters

[in]

ip

Interface/IP to ignore (e.g., 192.168. or eth1)

void janus_ice_incoming_data	(	janus_handle *	handle,
		char *	label,
		char *	buffer,
		int	length
	)

Plugin SCTP/DataChannel callback, called by the SCTP stack when when there's data for a plugin.

Parameters

[in]	handle	The Janus handle associated with the peer
[in]	label	The label of the data channel the message is from
[in]	buffer	The message data (buffer)
[in]	length	The buffer lenght

void janus_ice_init	(	gboolean	ice_lite,
		gboolean	ice_tcp,
		gboolean	full_trickle,
		gboolean	ipv6,
		uint16_t	rtp_min_port,
		uint16_t	rtp_max_port
	)

ICE stuff initialization.

Parameters

[in]	ice_lite	Whether the ICE Lite mode should be enabled or not
[in]	ice_tcp	Whether ICE-TCP support should be enabled or not (only libnice >= 0.1.8, currently broken)
[in]	full_trickle	Whether full-trickle must be used (instead of half-trickle)
[in]	ipv6	Whether IPv6 candidates must be negotiated or not
[in]	rtp_min_port	Minimum port to use for RTP/RTCP, if a range is to be used
[in]	rtp_max_port	Maximum port to use for RTP/RTCP, if a range is to be used

Note

The RTP/RTCP port range configuration may be just a placeholder: for instance, libnice supports this since 0.1.0, but the 0.1.3 on Fedora fails when linking with an undefined reference to nice_agent_set_port_range so this is checked by the install.sh script in advance.

gboolean janus_ice_is_enforced

(

const char *

ip

)

Method to check whether an interface is currently in the enforce list for ICE (that is, won't have candidates)

Parameters

[in]

ip

Interface/IP to check (e.g., 192.168.244.1 or eth1)

Returns

true if the interface/IP is in the enforce list, false otherwise

gboolean janus_ice_is_full_trickle_enabled

(

void

)

Method to check whether full-trickle support is enabled or not.

Returns

true if full-trickle support is enabled, false otherwise

gboolean janus_ice_is_ice_debugging_enabled

(

void

)

Method to check whether libnice debugging has been enabled (http://nice.freedesktop.org/libnice/libnice-Debug-messages.html)

Returns

True if libnice debugging is enabled, FALSE otherwise

gboolean janus_ice_is_ice_lite_enabled

(

void

)

Method to check whether ICE Lite mode is enabled or not (still WIP)

Returns

true if ICE-TCP support is enabled/supported, false otherwise

gboolean janus_ice_is_ice_tcp_enabled

(

void

)

Method to check whether ICE-TCP support is enabled/supported or not (still WIP)

Returns

true if ICE-TCP support is enabled/supported, false otherwise

gboolean janus_ice_is_ignored

(

const char *

ip

)

Method to check whether an interface/IP is currently in the ignore list for ICE (that is, won't have candidates)

Parameters

[in]

ip

Interface/IP to check (e.g., 192.168.244.1 or eth1)

Returns

true if the interface/IP is in the ignore list, false otherwise

gboolean janus_ice_is_ipv6_enabled

(

void

)

Method to check whether IPv6 candidates are enabled/supported or not (still WIP)

Returns

true if IPv6 candidates are enabled/supported, false otherwise

void janus_ice_notify_hangup	(	janus_handle *	handle,
		const char *	reason
	)

Quick helper method to notify a WebRTC hangup through the Janus API.

Parameters

handle	The janus_handle instance this event refers to
reason	A description of why this happened

void janus_ice_relay_data	(	janus_handle *	handle,
		char *	label,
		char *	buf,
		int	len
	)

Core SCTP/DataChannel callback, called when a plugin has data to send to a peer.

Parameters

[in]	handle	The Janus handle associated with the peer
[in]	label	The label of the data channel to use
[in]	buf	The message data (buffer)
[in]	len	The buffer lenght

void janus_ice_relay_rtcp	(	janus_handle *	handle,
		int	mindex,
		gboolean	video,
		char *	buf,
		int	len
	)

Core RTCP callback, called when a plugin has an RTCP message to send to a peer.

Parameters

[in]	handle	The Janus handle associated with the peer
[in]	mindex	Index of the target stream (relative to the SDP), -1 for the first audio/video stream
[in]	video	Whether this is related to an audio or a video stream
[in]	buf	The message data (buffer)
[in]	len	The buffer lenght

void janus_ice_relay_rtp	(	janus_handle *	handle,
		int	mindex,
		gboolean	video,
		char *	buf,
		int	len
	)

Core RTP callback, called when a plugin has an RTP packet to send to a peer.

Parameters

[in]	handle	The Janus handle associated with the peer
[in]	mindex	Index of the target stream (relative to the SDP), -1 for the first audio/video stream
[in]	video	Whether this is an audio or a video frame
[in]	buf	The packet data (buffer)
[in]	len	The buffer lenght

void janus_ice_relay_sctp	(	janus_handle *	handle,
		char *	buffer,
		int	length
	)

Core SCTP/DataChannel callback, called by the SCTP stack when when there's data to send.

Parameters

[in]	handle	The Janus handle associated with the peer
[in]	buffer	The message data (buffer)
[in]	length	The buffer lenght

void janus_ice_set_event_stats_period

(

int

period

)

Method to modify the event handler statistics period (i.e., the number of seconds that should pass before Janus notifies event handlers about media statistics for a PeerConnection)

Parameters

[in]

period

The new period value, in seconds

void janus_ice_set_static_event_loops

(

int

loops

)

Method to configure the static event loops mechanism at startup.

Note

Check the event_loops property in the janus.jcfg configuration for an explanation of this feature, and the possible impact on Janus and users

Parameters

[in]

loops

The number of static event loops to start (0 to disable the feature)

int janus_ice_set_stun_server	(	gchar *	stun_server,
		uint16_t	stun_port
	)

Method to force Janus to use a STUN server when gathering candidates.

Parameters

[in]	stun_server	STUN server address to use
[in]	stun_port	STUN port to use

Returns

0 in case of success, a negative integer on errors

int janus_ice_set_turn_rest_api	(	gchar *	api_server,
		gchar *	api_key,
		gchar *	api_method
	)

Method to force Janus to contact a TURN REST API server to get a TURN service to use when gathering candidates. The TURN REST API takes precedence over any static credential passed via janus_ice_set_turn_server.

Note

Requires libcurl to be available, and a working TURN REST API backend (see turnrest.h)

Parameters

[in]	api_server	TURN REST API backend (NULL to disable the API)
[in]	api_key	API key to use, if required
[in]	api_method	HTTP method to use (POST by default)

Returns

0 in case of success, a negative integer on errors

int janus_ice_set_turn_server	(	gchar *	turn_server,
		uint16_t	turn_port,
		gchar *	turn_type,
		gchar *	turn_user,
		gchar *	turn_pwd
	)

Method to force Janus to use a TURN server when gathering candidates.

Parameters

[in]	turn_server	TURN server address to use
[in]	turn_port	TURN port to use
[in]	turn_type	Relay type (udp, tcp or tls)
[in]	turn_user	TURN username, if needed
[in]	turn_pwd	TURN password, if needed

Returns

0 in case of success, a negative integer on errors

void janus_ice_stop_static_event_loops

(

void

)

Method to stop all the static event loops, if enabled.

Note

This will wait for the related threads to exit, and so may delay the shutdown process

int janus_ice_test_stun_server	(	janus_network_address *	addr,
		uint16_t	port,
		janus_network_address *	public_addr
	)

Method to check whether a STUN server is reachable.

Parameters

[in]	addr	Address of the STUN server as a janus_network_address instance
[in]	port	Port of the STUN server
[out]	public_addr	Public address returned by the STUN server as a janus_network_address instance

Returns

0 in case of success, a negative integer on errors

gboolean janus_is_opaqueid_in_api_enabled

(

void

)

Method to check whether opaque ID have to be added to Janus API responses/events.

Returns

TRUE if they need to be present, FALSE otherwise

gboolean janus_is_rfc4588_enabled

(

void

)

Method to check whether the RFC4588 support is enabled.

Returns

TRUE if it's enabled, FALSE otherwise

gboolean janus_plugin_session_is_alive

(

janus_plugin_session *

plugin_session

)

Quick helper method to check if a plugin session associated with a Janus handle is still valid.

Parameters

plugin_session

The janus_plugin_session instance to validate

Returns

true if the plugin session is valid, false otherwise

void janus_seq_list_free

(

janus_seq_info **

head

)

void janus_set_max_nack_queue

(

uint

mnq

)

Method to modify the max NACK value (i.e., the number of packets per handle to store for retransmissions)

Parameters

[in]

mnq

The new max NACK value

void janus_set_no_media_timer

(

uint

timer

)

Method to modify the no-media event timer (i.e., the number of seconds where no media arrives before Janus notifies this)

Parameters

[in]

timer

The new timer value, in seconds

void janus_set_rfc4588_enabled

(

gboolean

enabled

)

Method to enable or disable the RFC4588 support negotiation.

Parameters

[in]

enabled

The new timer value, in seconds

void janus_set_slowlink_threshold

(

uint

packets

)

Method to modify the slowlink-threshold property (i.e., the number of lost packets per seconds that should trigger a slow-link event)

Parameters

[in]

packets

The new value, in lost packets per seconds

void janus_set_twcc_period

(

uint

period

)

Method to modify the TWCC feedback period (i.e., how often TWCC feedback is sent back to media senders)

Parameters

[in]

timer

The new period value, in milliseconds

void janus_trickle_destroy

(

janus_trickle *

trickle

)

Helper method to destroy a janus_trickle instance.

Parameters

[in]

trickle

The janus_trickle instance to destroy

janus_trickle* janus_trickle_new	(	const char *	transaction,
		json_t *	candidate
	)

Helper method to allocate a janus_trickle instance.

Parameters

[in]	transaction	The Janus API ID of the original trickle request
[in]	candidate	The trickle candidate, as a Jansson object

Returns

a pointer to the new instance, if successful, NULL otherwise

gint janus_trickle_parse	(	janus_handle *	handle,
		json_t *	candidate,
		const char **	error
	)

Helper method to parse trickle candidates.

Parameters

[in]	handle	The Janus handle this candidate belongs to
[in]	candidate	The trickle candidate to parse, as a Jansson object
[in,out]	error	Error string describing the failure, if any

Returns

0 in case of success, any code from apierror.h in case of failure
